System Format
Active – Sealed Cabinet

Drive Unit Complement
1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification
High-Efficiency Class-D

Lower Frequency Limit
-6dB @17Hz

Upper Frequency Limit
(LPF Off) -6dB @400Hz

Driver Excursion (pk-pk)
50 mm

DSP
28 Bit 50 MIPS Configuratable through MaestroUnite

Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac
Instantaneous: 500 W*
Continuous short-term: 425 W**

Amplifier Output Power, 120Vac
Instantaneous: 450 W
Continuous short-term: 390 W

LED UI Control
Brightness, On-Off

Phase Control
0-360 Degrees measured at LPF Crossover

Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals

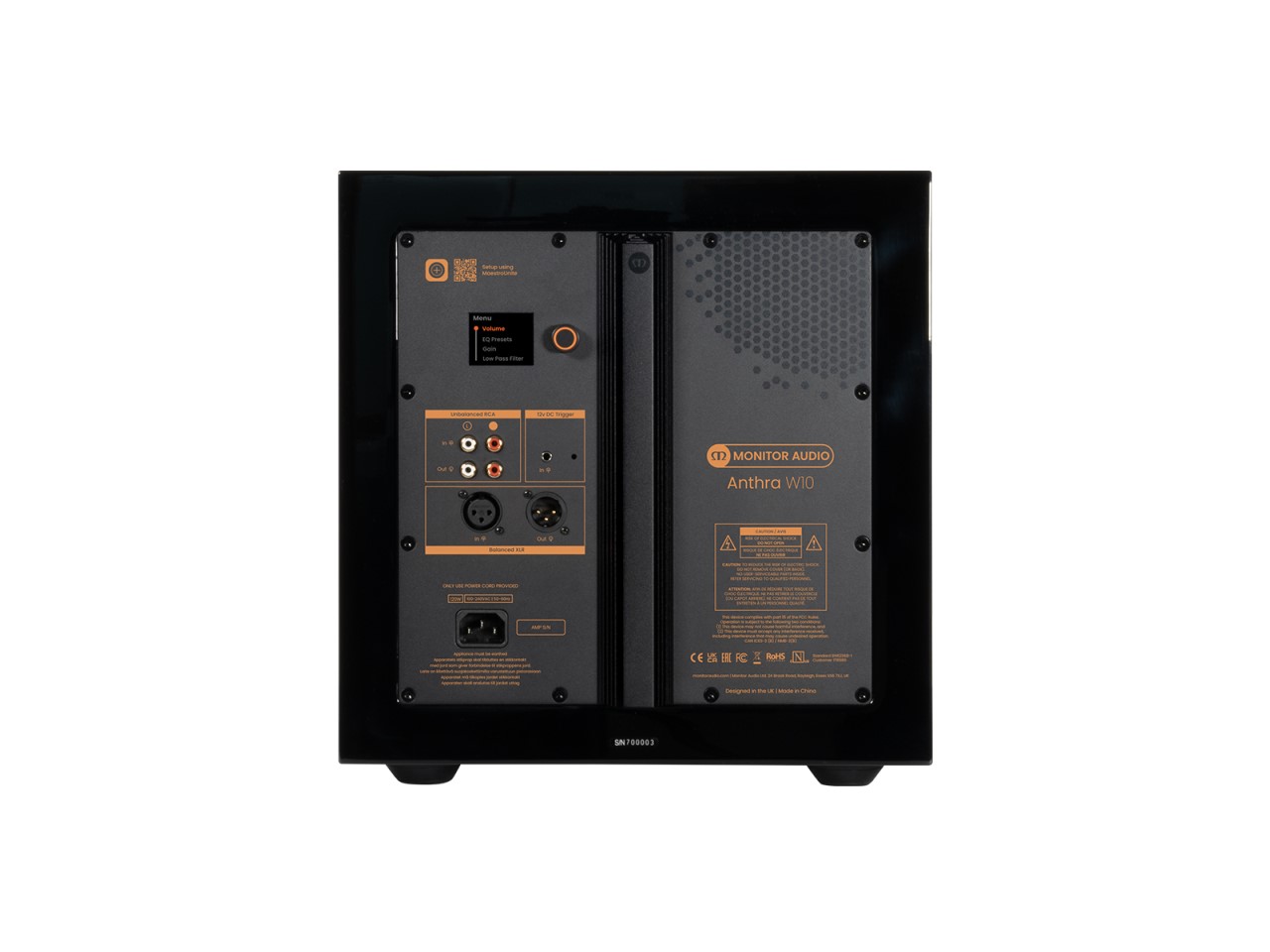

Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR

Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage
Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD)
321 x 321 x 321 mm

Power Consumption
120 W

Cabinet Construction
Braced 18 mm thick MDF with 36 mm front baffle

Grille
Cloth covered magnetically attached Grilles

Weight
20.06 kg (44 lb 1 oz)

* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
