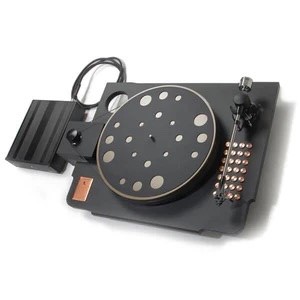

COPPERHEAD-X WITH AESHNA -CARBON TONEARM 黑膠唱盤(含碳纖維唱臂) (編號:COPPERHEAD-X WITH AESHNA CARBON TONEARM)

$224,000 $214,000
購買數量

加入至追蹤清單
● 35mm CNC diamond cut contoured billet aluminum platter at 5.4kgs
● Stainless steal bearing housing with cold fit copper wall insert. Tef/PTFE thrust plate and ceramic ball bearing. *Cryo-treated
● Plinth is solid CNC machine cut aluminum with acrylic Anti-vibration bearing sub-plate.
● Red copper plinth dampening adjustable slugs/optional Teflon slugs

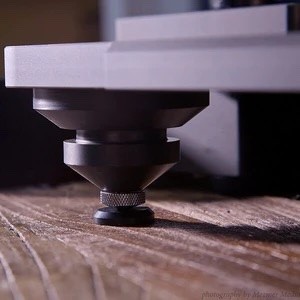

● CNC machined POM foot with chrome adjustment spike.
● Second arm socket for additional tonearm up to 10.5"
● Aeshna tonearms: Comes standard with Aeshna Satin black tonearm with upgrade option. (see dealer)
● Table Colours- Satin Black, Antique bronze anodized plater,
●12V AC motor in independent aluminum motor housing 1.8kgs, machined from solid block of aluminum
● POM engineered resin pulley with silicone belts
● External AC regulator with fine pitch control for 33.3rpm/45rpm operation
● Gross Weight: 20kgs/44lbs

商品特色


Copperhead 是有著一台外接式的轉速控制器可以使用 33.3rpm 和 45rpm 。

標準配備的是我們的 Aeshna 碳或鋁臂,可以有第二個唱臂插座,可用其他製造商的唱臂(最大 10.5 英寸的臂。)

中心軸承為帶銅襯套的兩件式實心不銹鋼;陶瓷球軸承和鐵氟龍止推板。

我們進一步升級了軸承蓋,在軸承和鋁盤之間加入了矽膠阻尼環。

桌面軸承位於 20 毫米丙烯酸防振盤中,將軸承與底座隔離,進一步減少和駐波振動。

圓盤通過 PA-66 尼龍和不銹鋼螺絲的組合使用鎖定到位,有效地將軸承和盤片與底座分離。

底座為緞黑色實心鋁,由三個大 POM 支腳支撐以吸收振動。

底座總共使用了鋁、聚甲醛、丙烯酸和純銅嵌條的混合物,以有效地消除振動。

盤子是機加工的鋁坯,頂部是金剛石切割,底部是加工輪廓以消散振動。​​​





提供多種 Aeshna 唱臂組合。已洽響音音響07-3986559
