Platinum PLIC II 坎入式喇叭 (編號:Platinum PLIC II)

$

加入至追蹤清單
System Format

3 Way – 4 Driver

Frequency Response (-6 dB)

45 Hz – 60 kHz

Sensitivity (1W@1M)

90 dB

Maximum SPL

112 dBA

Nominal Impedance

4 ohms (3.1 ohms minimum @ 1.1 KHz)

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

50 – 150 W

Recommended Enclosure

PLIC-BOX II or a bespoke sealed enclosure of 24 litres

Mid / H.F Crossover Frequency

5.3 KHz 3rd order (18 dB / Octave)

Bass / Midrange Crossover Frequency (Hz)

380 Hz 4th Order (24 dB / Octave)

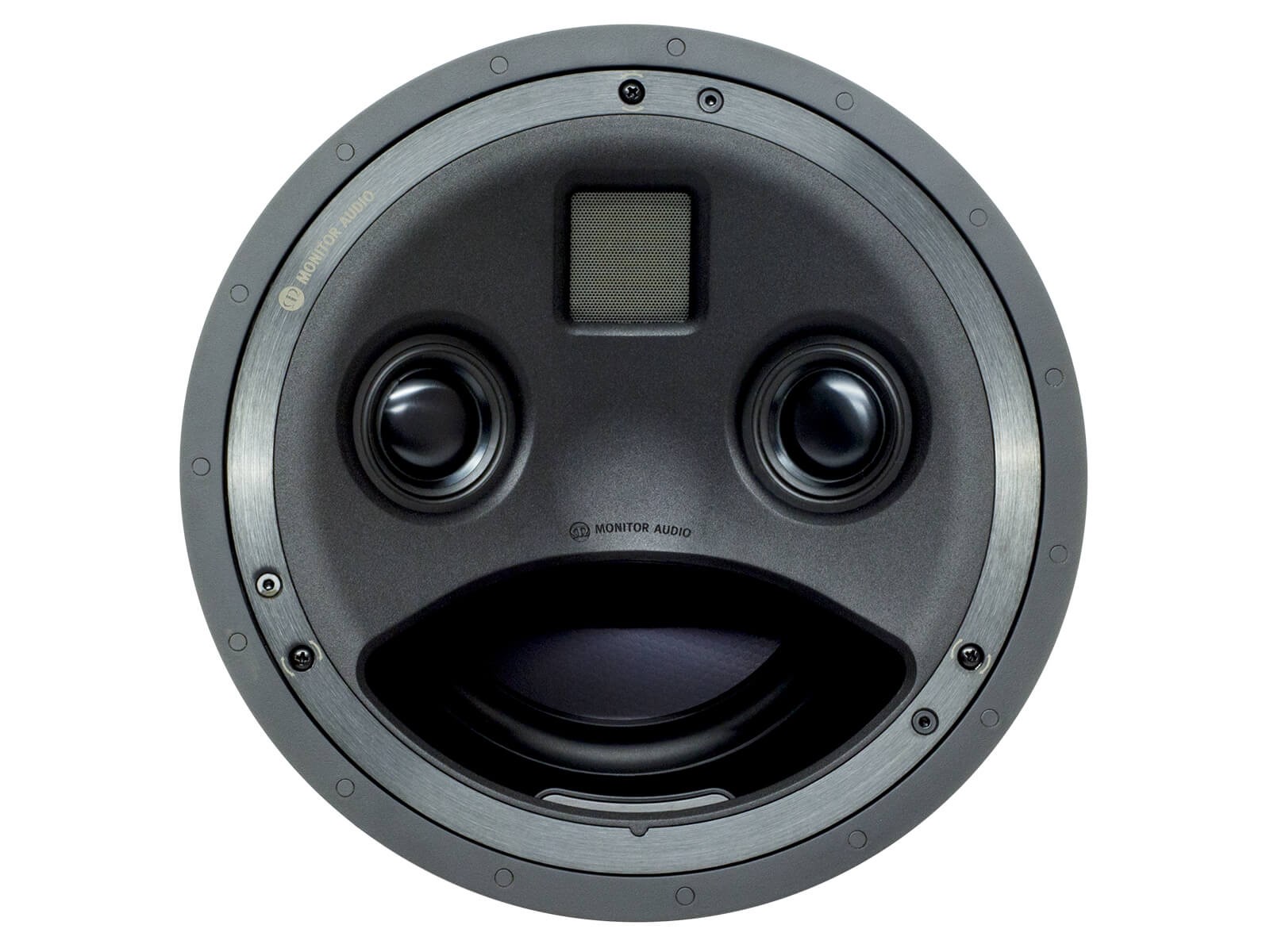

Drive Unit Complement

1 x 8" long-throw RDT II bass driver
2 x 2" C-CAM mid-range drivers
1 x MPD high frequency transducer

Adjustment Controls

HF level switch (+1 dB / 0 dB / -1 dB)
MF level switch (+1 dB / 0 dB / -1 dB)

Connection

High-end ‘Push’ type terminals

Fixing Type

3 position Tri-Grip dog fixings

Overall Diameter - Grille On/Off

309 mm (123/16")
296.25 mm (1111/16")

Overall Depth – Grille On/Off

191.5 mm (71/2")
188 mm (73/8")

Construction Material

Main chassis - Mineral Filled ABS (RoHS2 compliant)
Baffle – Die cast Aluminium

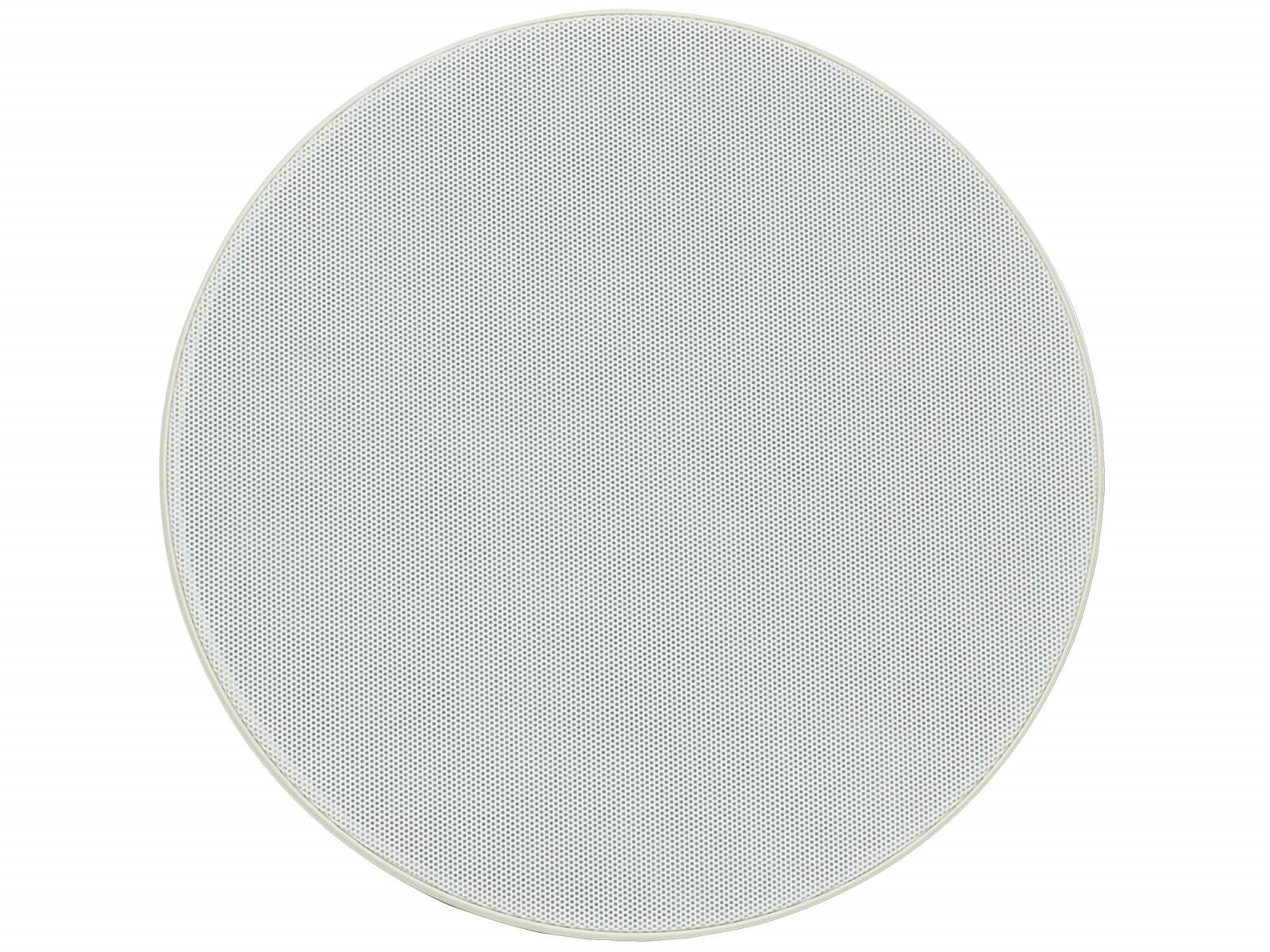

Grille Type

Low profile trimless grille with magnetic fixings – Paintable (square grille available as a cost option)

Optional Square Grille - Outer Dimensions

309 x 309 mm (123/16")

Cut-Out Hole Diameter

273 mm (103/4")

Mounting Depth

185 mm (75/16")

Weight (each)

5.22 kg (11 lb 8 oz)

Pre-Construction Bracket

CB10 Pre-Construction Bracket (Light Brown)

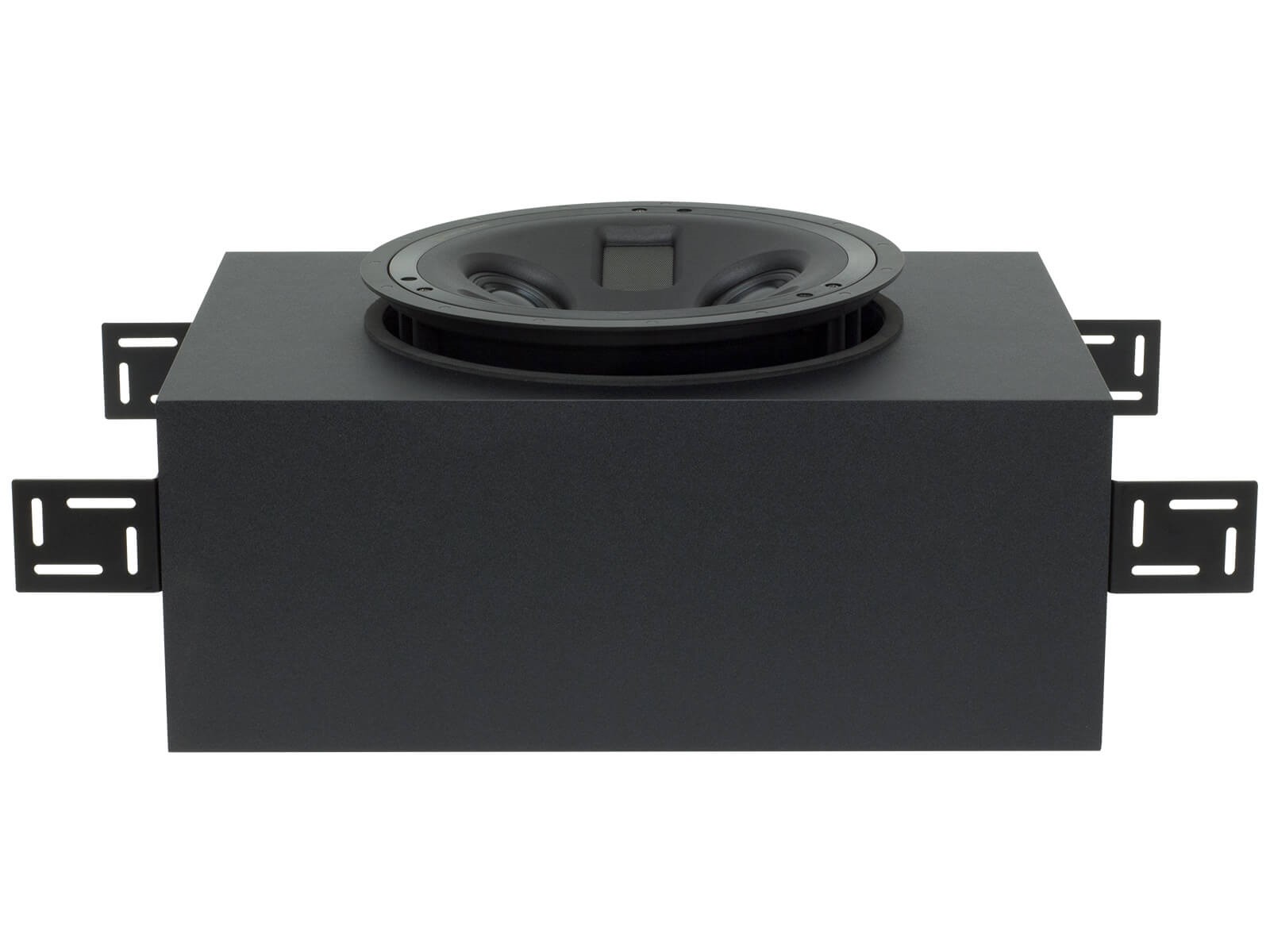

Back Box

PLIC-BOX II

Sold As

Single Unit

商品特色


Monitor Audio PLIC II 吸頂式喇叭配備一個 8 英寸長衝程低音驅動器,採用剛性振膜技術 (RDT II) 音盆技術,可提供極其強勁的低音。

這是通過 RDT 音盆快速精度對音頻信號做出反應來實現的為了在揚聲器以較高頻率播放時為聽者提供均勻的頻譜,採用 C-CAM 音盆技術和 Monitor Audio 的微型折疊振膜 (MPD) 換能器的附加雙中音驅動器安裝在剛性鋁上擋板並指向聽音區提供均勻的中高頻分散。
