System Format

Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet

Lower Frequency Limit

30 Hz (- 6 dB)

Upper Frequency Limit

Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Output

200 W @ 1% THD+N

Amplifier Classification

Class D amplifier with Switch mode power supply (SMPSU)

Bass EQ Profiles

Music / Movie / Impact

Phase Control

0 & 180 degrees

Auto Sensing

Line Level >3.5mV

Input Level Requirements

Standby after approximately 15 minutes if no signal sensed

Drive Unit Complement

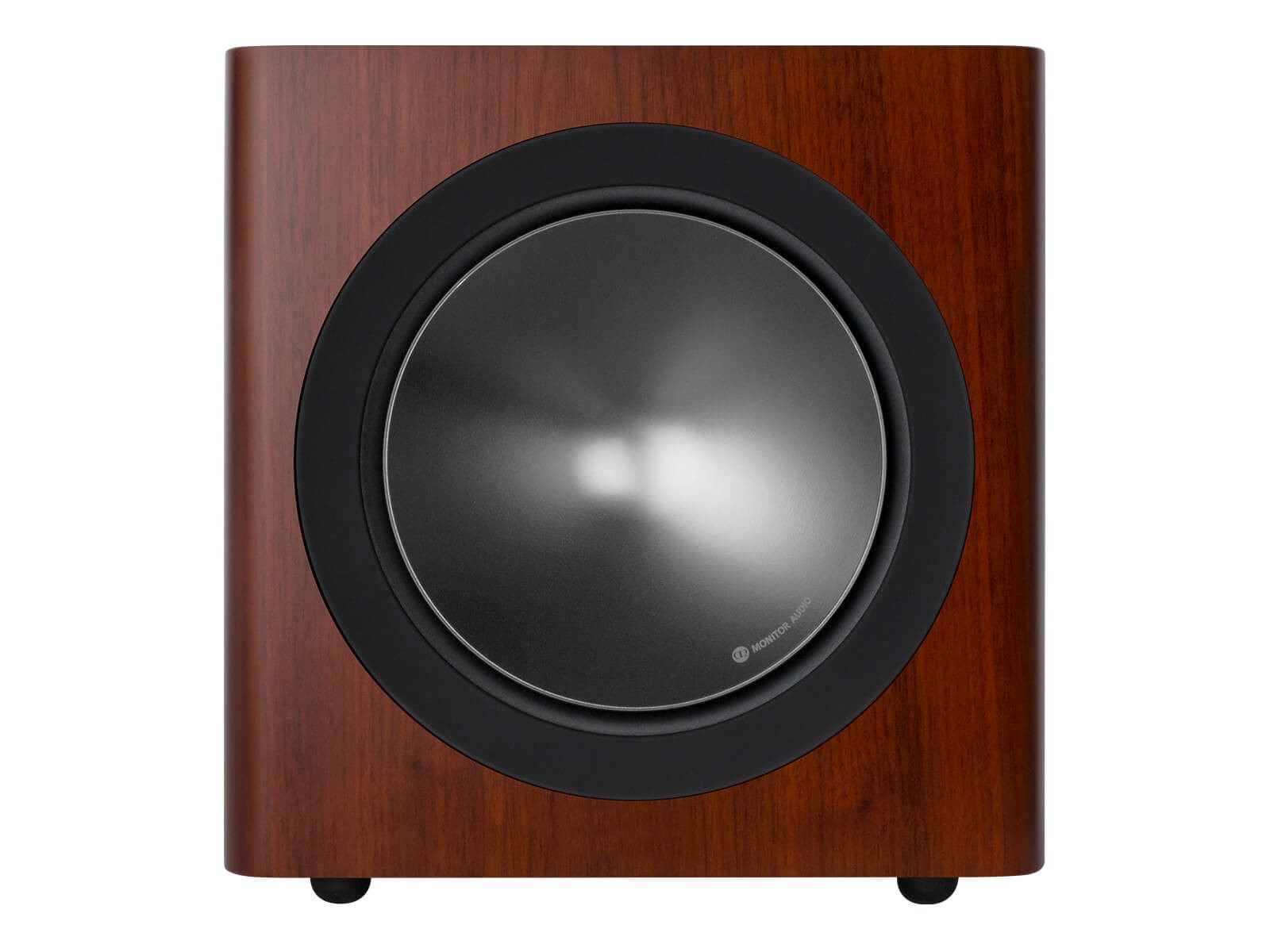

1 x 10" (250 mm) C-CAM long throw driver 1 x 10" (250 mm) ABR

Input Impedance

> 20 ohms

Mains Input Voltage

AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (Including Amp and Feet (H x W x D))

348 x 330 x 345 mm (1311/16 x 13 x 129/16")

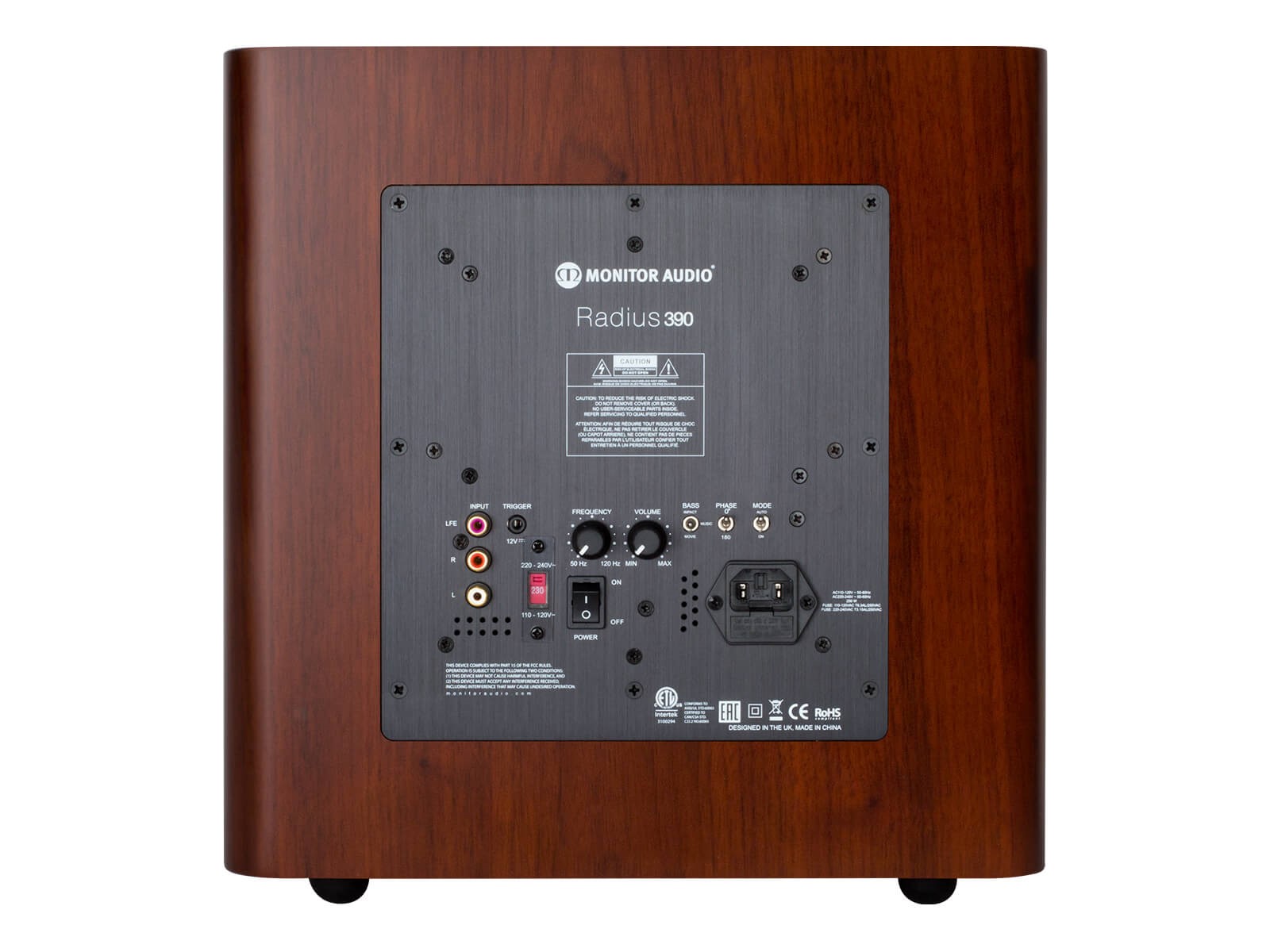

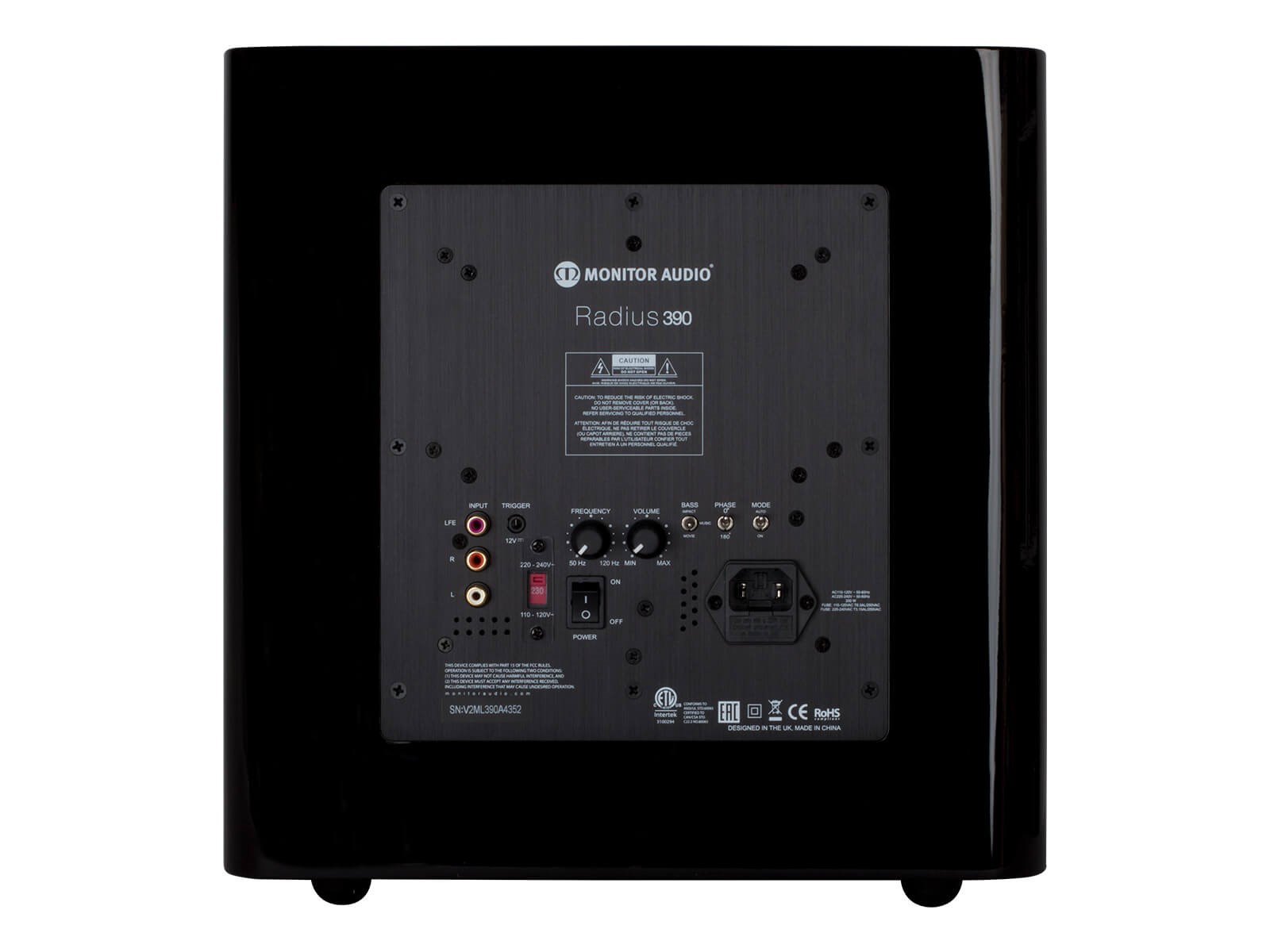

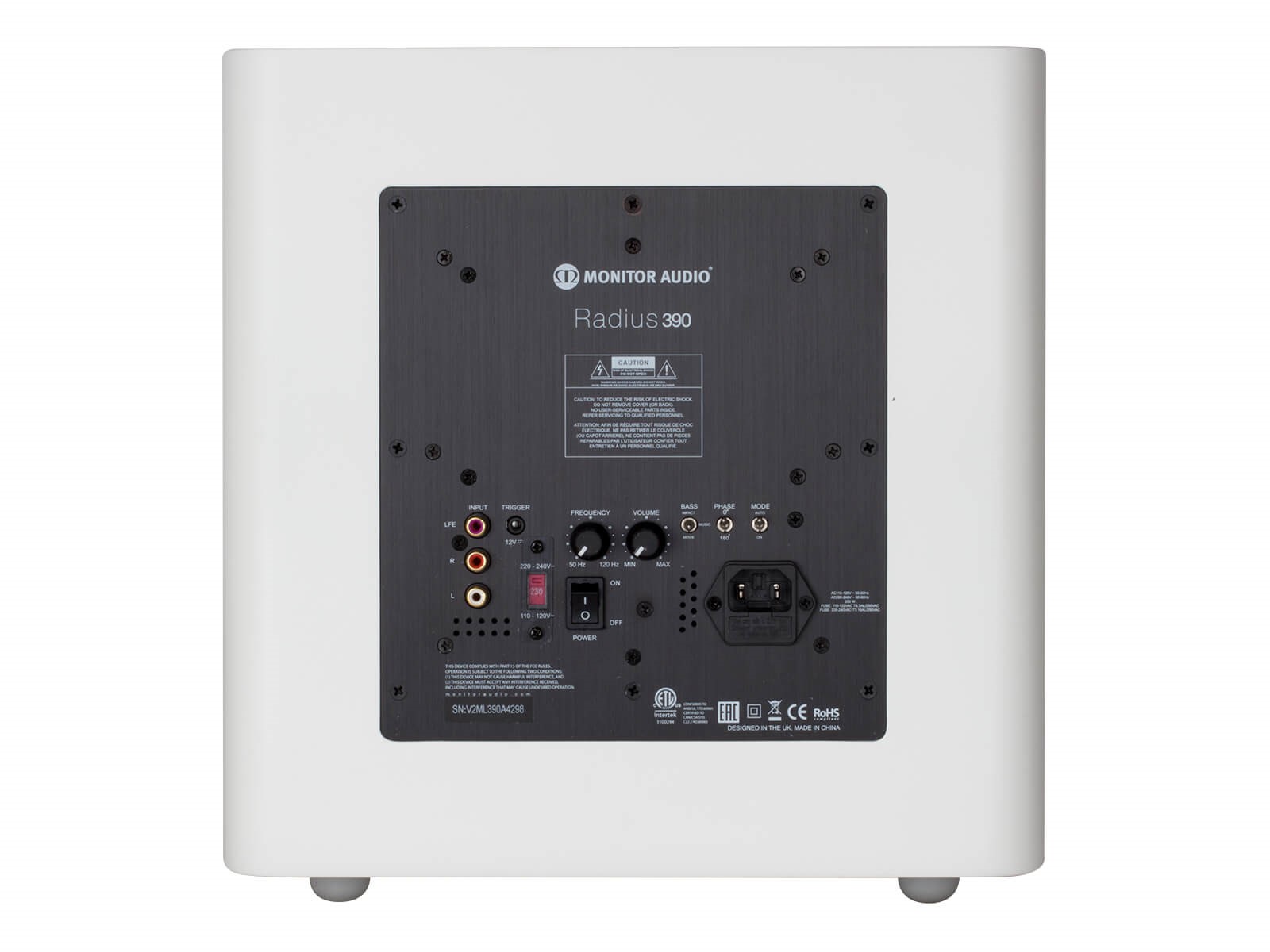

Connection

Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)

Trigger Input

5 - 12v via 3.5mm mono mini-jack socket

Power Consumption

200 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)

13.76 kg (30 lb 4 oz)

Sold As

Single Unit
