SPECIFICATION

NOMINAL IMPEDANCE
4 ohms
RECOMMENDED AMPLIFIERS
10-250W
FREQUENCY RESPONSE
25Hz-30KhZ
SENSITIVITY
90 dB linear for 1 watt at 1 metre

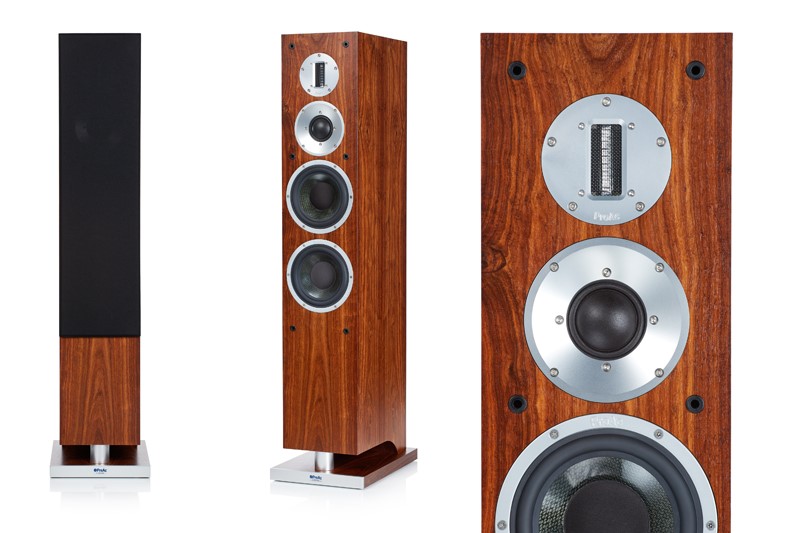

BASS /MIDRANGE DRIVERS
2x ProAc 165mm (6.5”) Studio professional drive units with polymer impregnated Kevlar cones.
MIDRANGE
ProAc 50mm (2”) soft dome with a CNC machined 6061 aluminium alloy air coupling
TWEETER
ProAc ribbon with diaphragm as light as a human hair, alnico magnet and rear chamber damping.

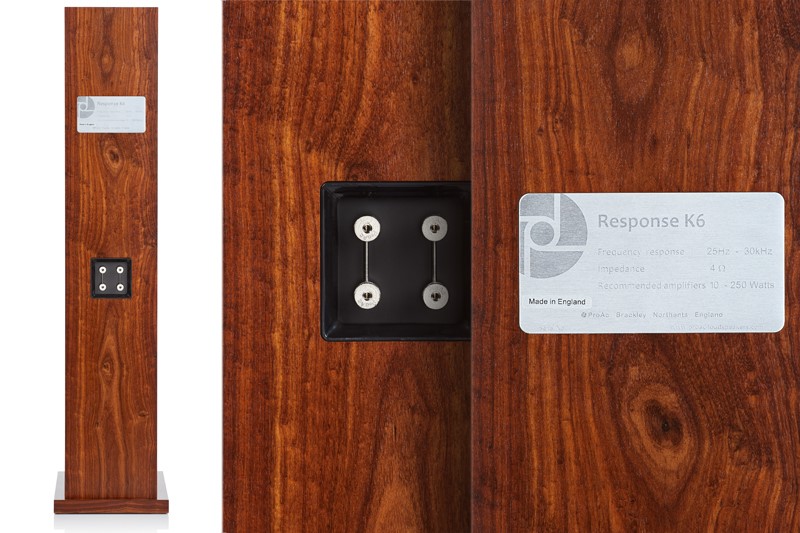

CROSSOVER
Finest components on dedicated dual layer circuit board. ProAc multistrand oxygen free copper cable throughout. Split for optional Bi Wiring or Bi Amplification.
HEIGHT (CABINET)
1150mm (45.5“)
WIDTH (CABINET)
212mm (8.5”)
DEPTH (CABINET)
344mm (13.5”)
WEIGHT
44kgs (97lbs) each cabinet
MODE
Floor standing

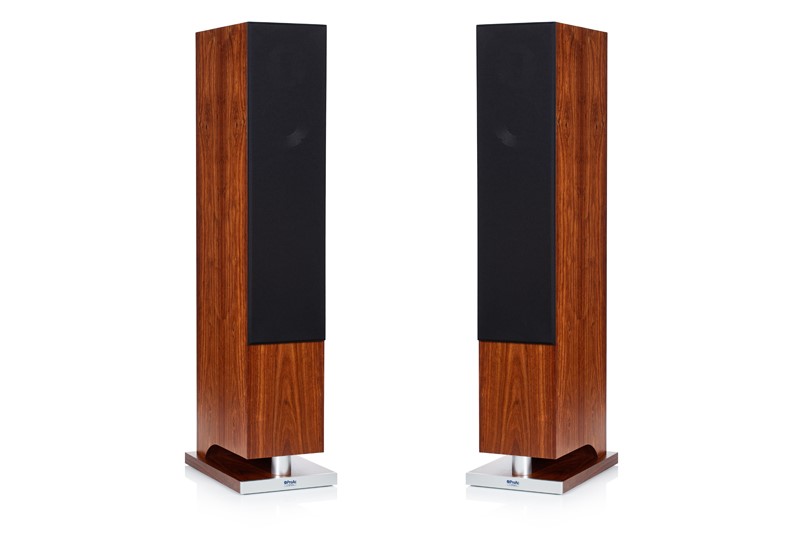

GRILLE
Acoustically transparent crimplene
STANDARD FINISHES
Black Ash, Mahogany, Cherry, Oak, Silk White, Natural Oak and Walnut
PREMIUM FINISHES
Rosewood, Ebony. *Premium Finishes to order at extra cost*
