SPECIFICATION

NOMINAL IMPEDANCE
8 ohms
RECOMMENDED AMPLIFIERS
10 to 150 watts
FREQUENCY RESPONSE
28Hz to 30Khz
SENSITIVITY
90 dB linear for 1 watt at 1 metre

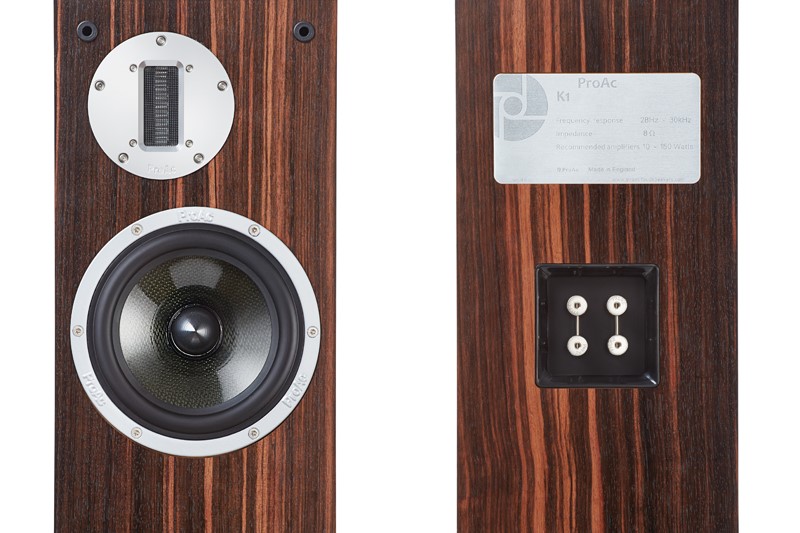

BASS DRIVER/MIDRANGE
Bass and midrange frequencies are both covered by a single 6.5” (165mm) Kevlar coned unit, the Kevlar cone covers all frequencies up to 30Khz and slightly above.
TWEETER RIBBON
The ProAc ribbon tweeter has a ribbon lighter than a human hair with rear chamber damping and alnico magnet.
CROSSOVER

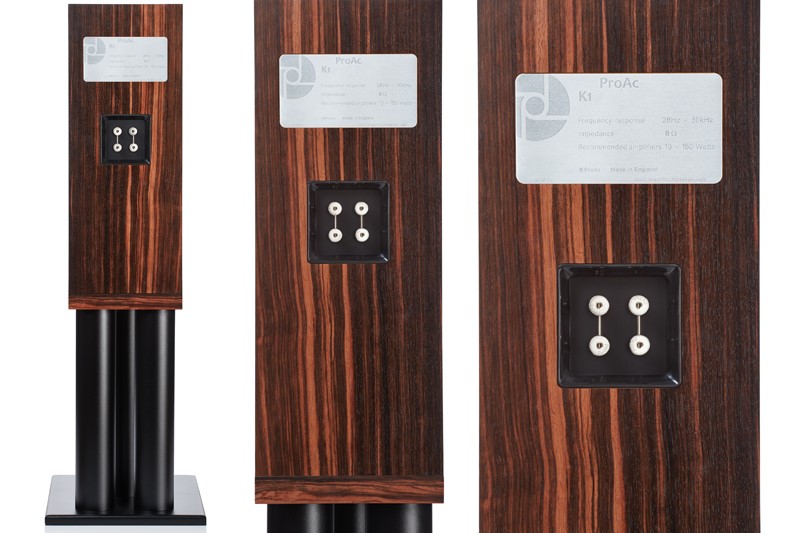

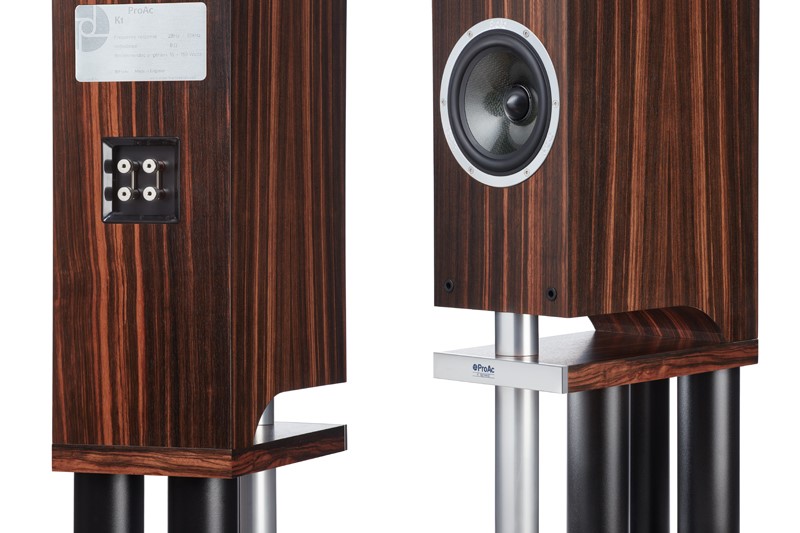

Finest components on dedicated dual layer circuit board. ProAc Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification
HEIGHT
569mm (22.4 “)
WIDTH
210mm (10.4”)
DEPTH
15.8 inches
MODE
Stand mounting

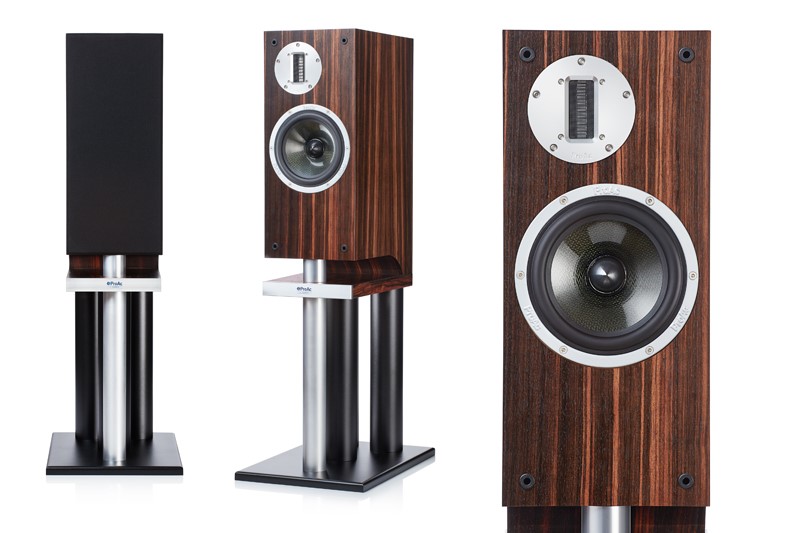

GRILLE
Acoustically transparent crimplene
STANDARD FINISHES
Black Ash, Mahogany, Cherry, Natural Oak, Silk White and Walnut.
PREMIUM FINISHES
Rosewood, Ebony NEW Tamo Ash, Dark Eucalyptus *Premium Finishes to order at extra cost*

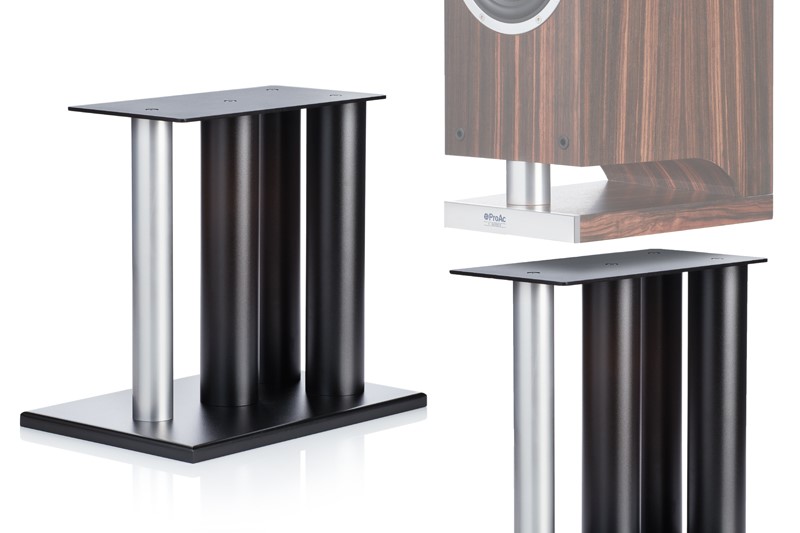

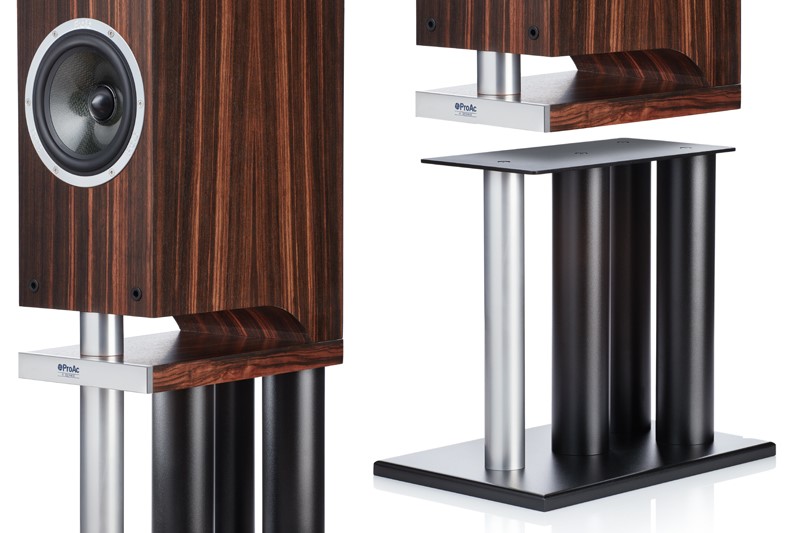

DEDICATED K1 STAND AVAILABLE SEPARATELY
Height 500mm (19.7”) Top plate 320mm x 190mm (12.6” x 7.5”) 15kg (33lb) each stand
